One-Touch Record Monitor

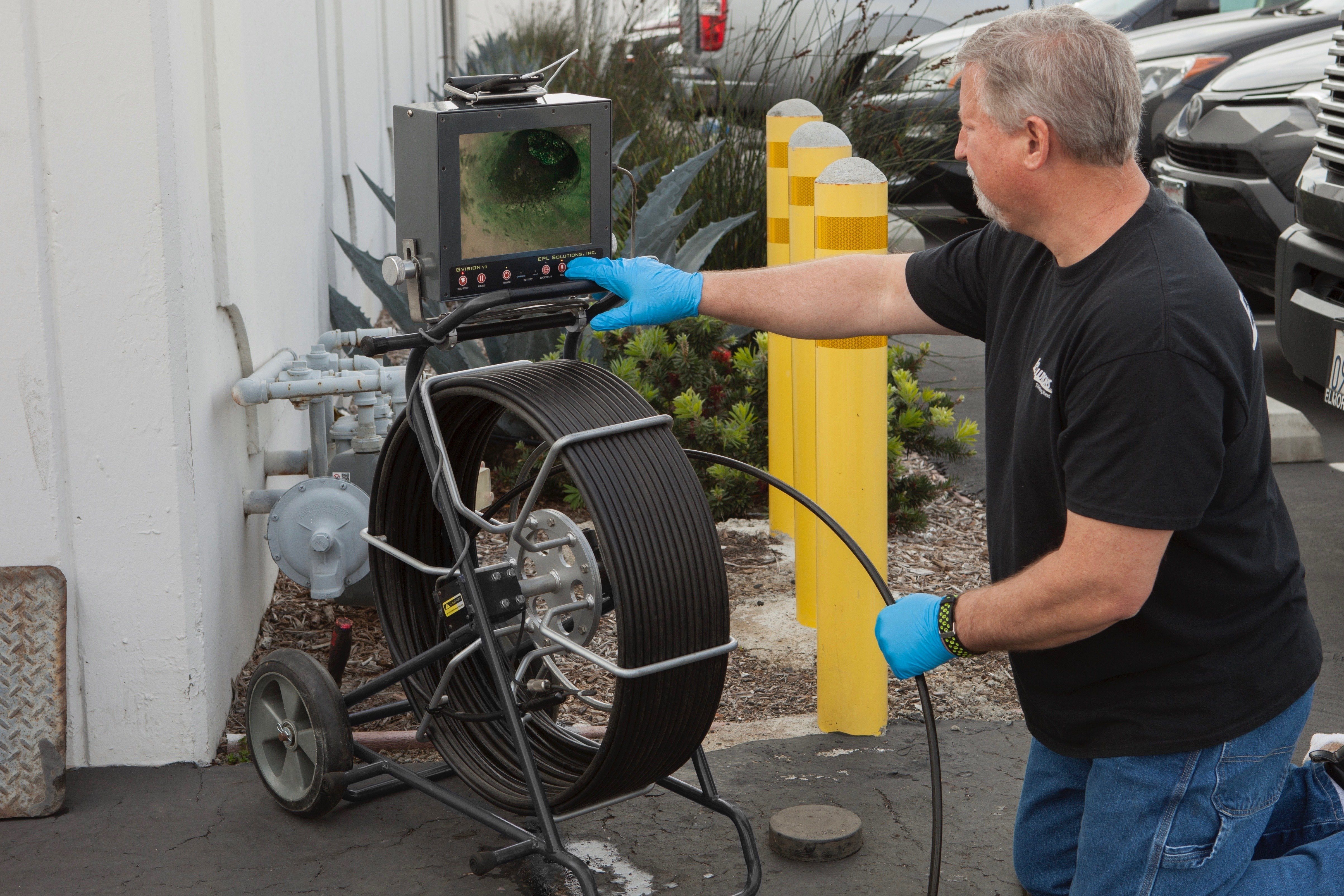

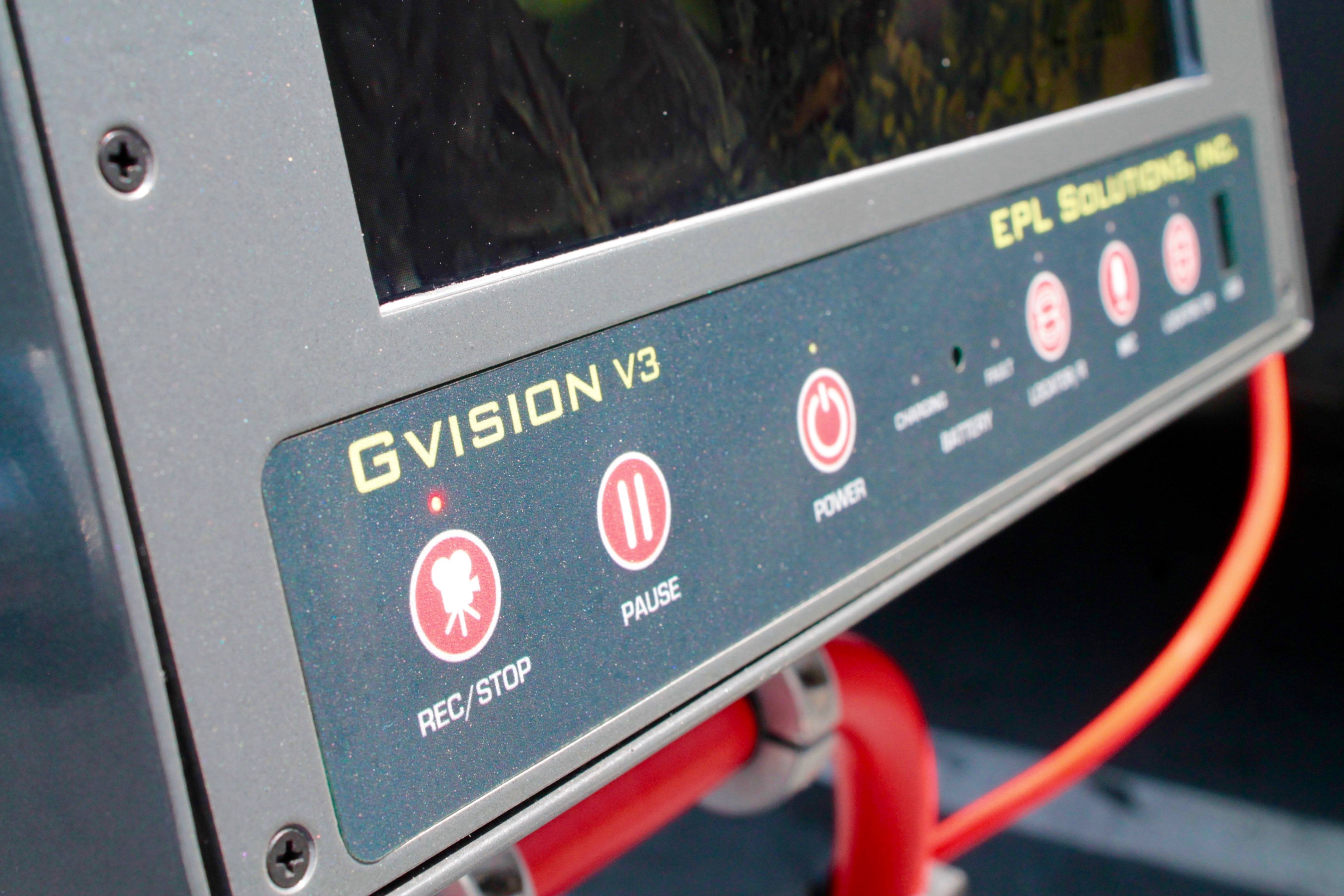

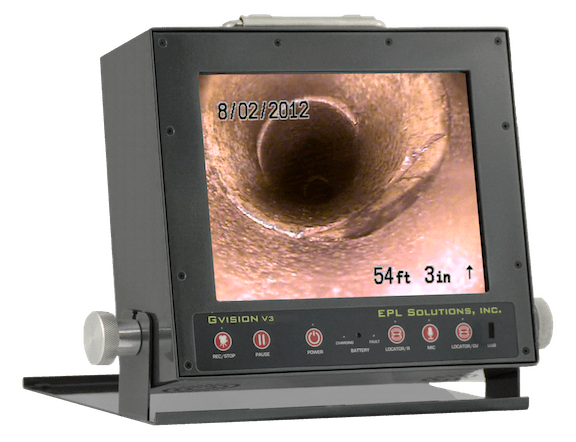

The Gvision® V3 monitor favors extreme durability and ease of use. The V3's military grade design yields a durable, lightweight tool and incorporates a high quality LCD screen, delivering a vivid picture even in direct sunlight. The V3 will connect to Ridgid® and most other camera reels. It can be mounted on the reel or set at an angle on the ground. One Touch® Record technology allows you to record high quality videos onto a USB thumb drive, hard drive, and an Apple® iOS device. Add narrative to the videos using the built in microphone and get up to 4 hours of running time with the optional internal battery. With this monitor in your toolkit, satisfaction is guaranteed.
- Extremely rugged and militaristic
- TruView Display
- Record HQ* video
- Adapts to many camera reel brands
- Low voltage power supply
- Optional internal battery for up to 4 hours runtime
- Made in U.S.A.
Gvision® V3 w/ Battery
Ruggedized construction for years of service.
We wanted the monitor to handle the toughest workspaces. Constructed using heavy-duty, lightweight materials, the monitor passed a series of severe environmental conditions, from hard impact survival to extreme heat. We added a cover/stand for secure transportation and for angling the monitor on the ground and rooftop.
Protective Aluminum Case
The Gvision®'s outer shell is fabricated with a durable aluminum commonly used in construction.
Amazing picture quality.
See a clear picture in the bright sun with this vibrant LCD. Watch it from across the parking lot, from the rooftop or on the other side of the street. The anti-glare screen has a bright picture quality in any setting.
10.4" TruView Color Display
Record. Save. Send.
With One-Touch Record technology, you can save high quality videos onto an Apple® Device, flash drive and hard drive. Add narrative with the built-in microphone and share your videos with YouTube, Dropbox, Email and more.
Broadcast Quality Video
Videos save as MP4 and MOV files
Audio via built-in microphone [mic sensitivity - 46 ± 2.0, ( 0 dB = 1V / Pa ) at 1K Hz.]
Flash drive, Hard drive, USB/SD: 720 x 480 resolution .mp4
Apple® device (direct-connect): 320 x 240 resolution .mp4
- 12 volt power
- Camera connection
- Audio/Video input and output connection
3-pin receptacle push-pull locking for 12 volts power
8-pin receptacle push-pull locking for camera interconnect cord
4-pin receptacle M9 locking for Audio/Video input and output connection
USB port for external media connection
Size and Weight
Height: 11.25 inches (28.6 cm)
Width: 9.75 inches (24.7 cm)
Depth: 4 inches (10 cm)
Weight: 10 lb. (4.5 kg) 10.5 lb. with battery (5 kg)
10.4" Color LCD
170º degree view
800 x 3(RGB) x 600
0.09" heavy-duty aluminum
Solid locking aluminum knobs
Electrical and Operating Requirements
Power voltage: 90v-264v AC switching power supply for 12v DC In
Internal battery voltage: 12 volts 9000mAh
In the Box
Water-proof accessory case
12 Volt switching power supply
Camera interconnect cord
Automobile aux. cord for charging optional battery (for model V3.03 only)
4GB Type-A flash drive for recording video
Monitor mount kit for camera reel (optional)
Shoulder strap (optional)
Recording Firmware Specifications
Gvision records onto flash drive, hard drive and USB/SD adapter devices.
Firmware is required for a direct-connect recording onto an Apple® device. Contact EPL Solutions, Inc. for current firmware update and visit Product Support.
Specifications applicable October 2018
Frequently asked questions
Does it come with a warranty?
The Gvision® includes a lifetime manufacturer's defect warranty, and a one-year warranty from date of purchase.
Will it connect to my camera?
The Gvision® is designed to connect with Ridgid®, Spartan®, Geneye®, SRECO®, EasyCam® and many other camera brands.
Does it have a counter?
Reels which have a counter built-in will display on the Gvision® screen, such as Ridgid®. The counter isn't built into the monitor.
How long does the battery last?
The Gvision® battery will last up to 4 hours, and holds an average of 3 - 3-1/2 hours when recording.
Does it record onto Android?
Videos recorded onto a USB-to-microUSB flash drive can be downloaded onto Android and Samsung mobile phones. The direct connect method is only available for iOS devices.
What is the weight and dimension?
The Gvision® is about 11 inches x 9 inches x 4 inches and can weigh up to 10.5 pounds.
